Description

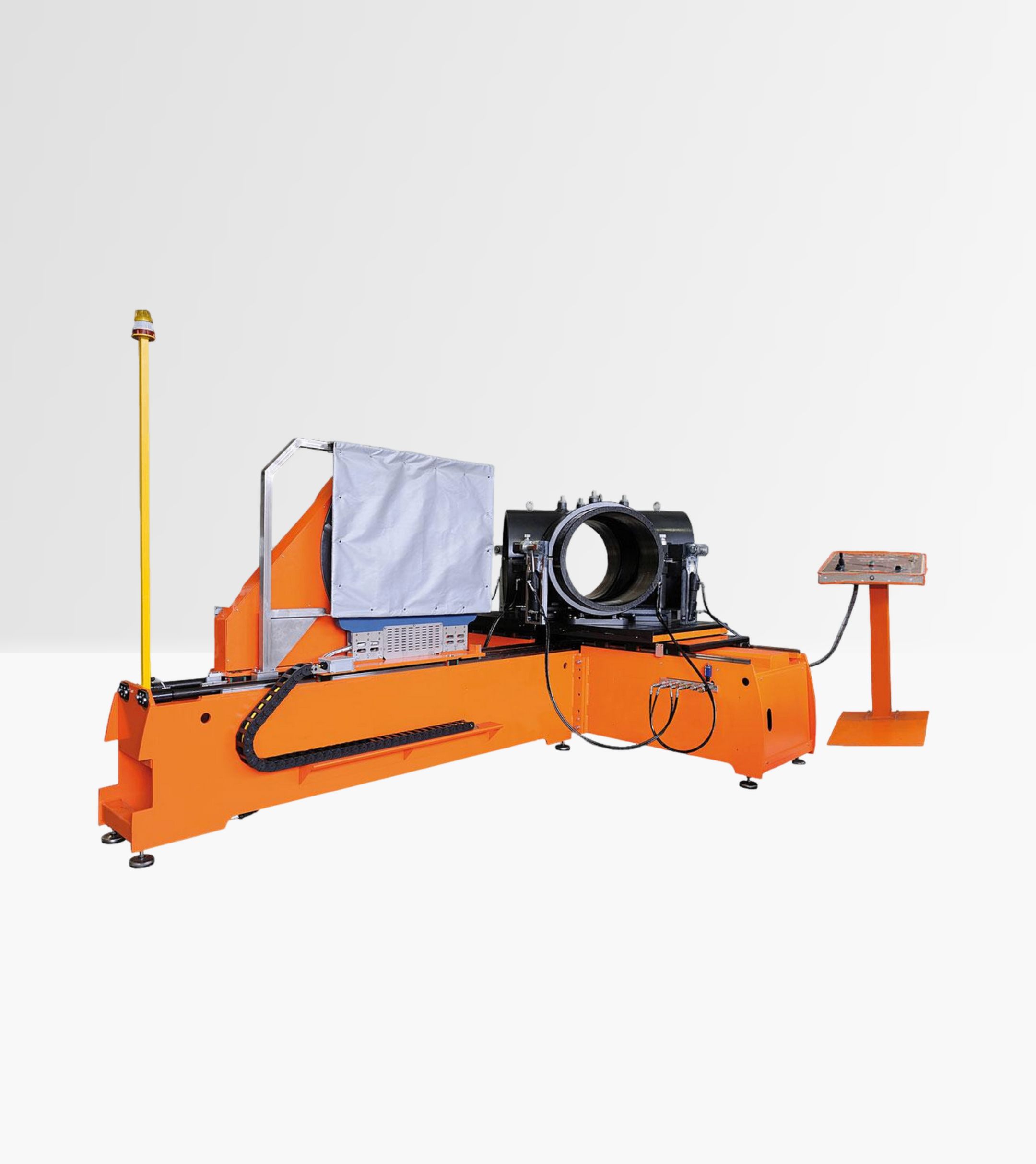

The ALFA 630 T is designed for fabricating fittings by joining pipe segments using special jaws. It welds elbows, tees, crosses, and wyes in sizes Ø 225–630 mm (8″ IPS – 24″ DIPS).
All jaw operations—opening, closing, and blocking—are electro-hydraulically controlled. The machine can also weld special and molded fittings (e.g., elbows, tees, flange necks) using dedicated jaws.
Main Features:
-
Machine body with two hydraulically controlled carriages
-

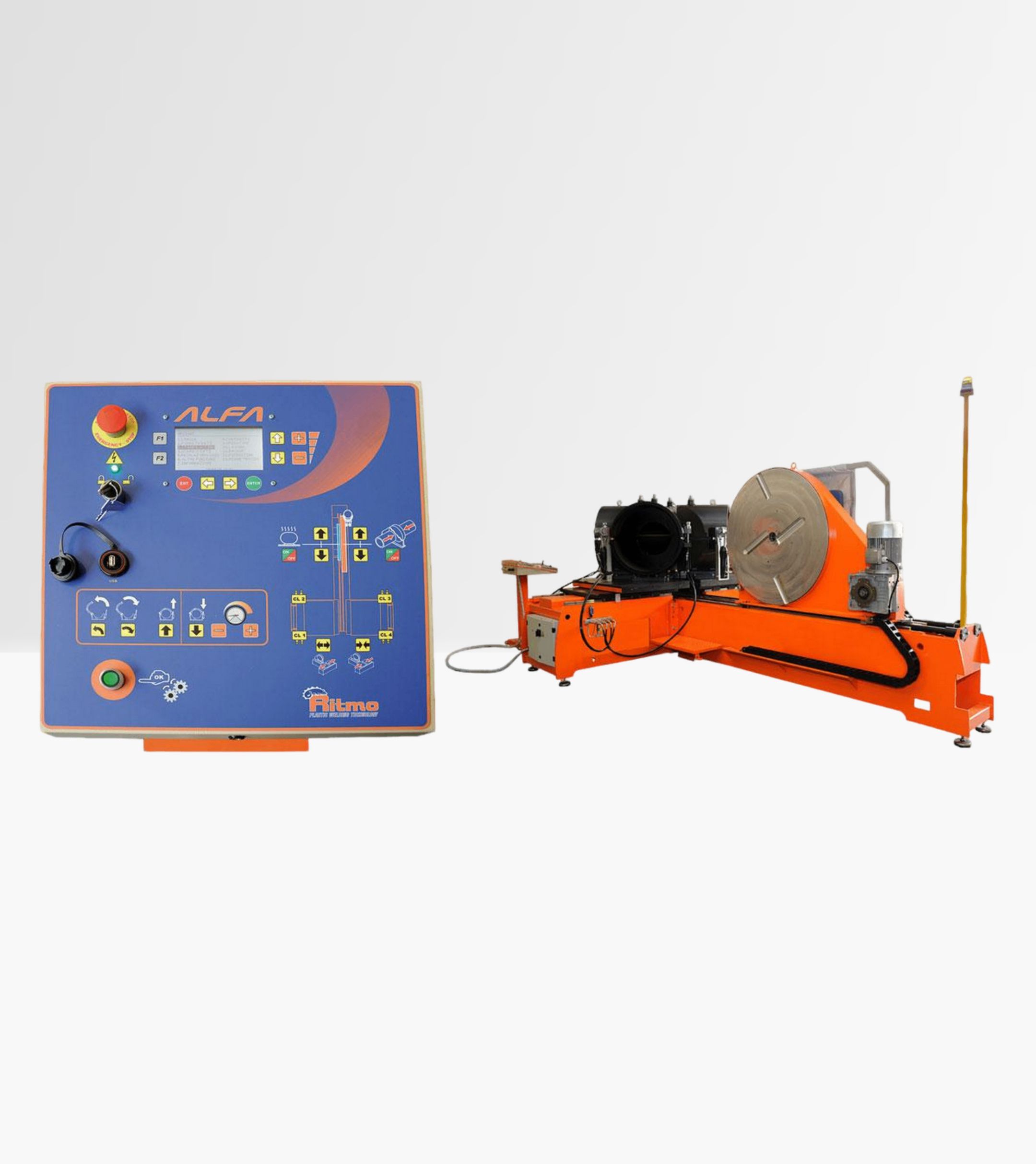

CNC control panel with data logging (up to 4000 cycles), 20 customizable presets, USB export, and PDF reporting
-
Teflon-coated heating plate with motorized in/out movement on spherical bearing guides
-
Motorized milling cutter on spherical bearing guides
-
Upper cylinder for welding extra-thick pipes and high-pressure applications
Standard Configuration:
-
Machine body with CNC control panel
-
Elbow jaws with inserts Ø 315–630 mm
-
Heating plate
-
Milling cutter
-
Upper cylinder + service tools
Optional Accessories:
-
Elbow jaw inserts Ø 225–280 mm
-
Wyes, tees, crosses jaws with inserts Ø 225–630 mm
-
Special right/left jaws (manual open) with inserts Ø 315–630 mm
