Description

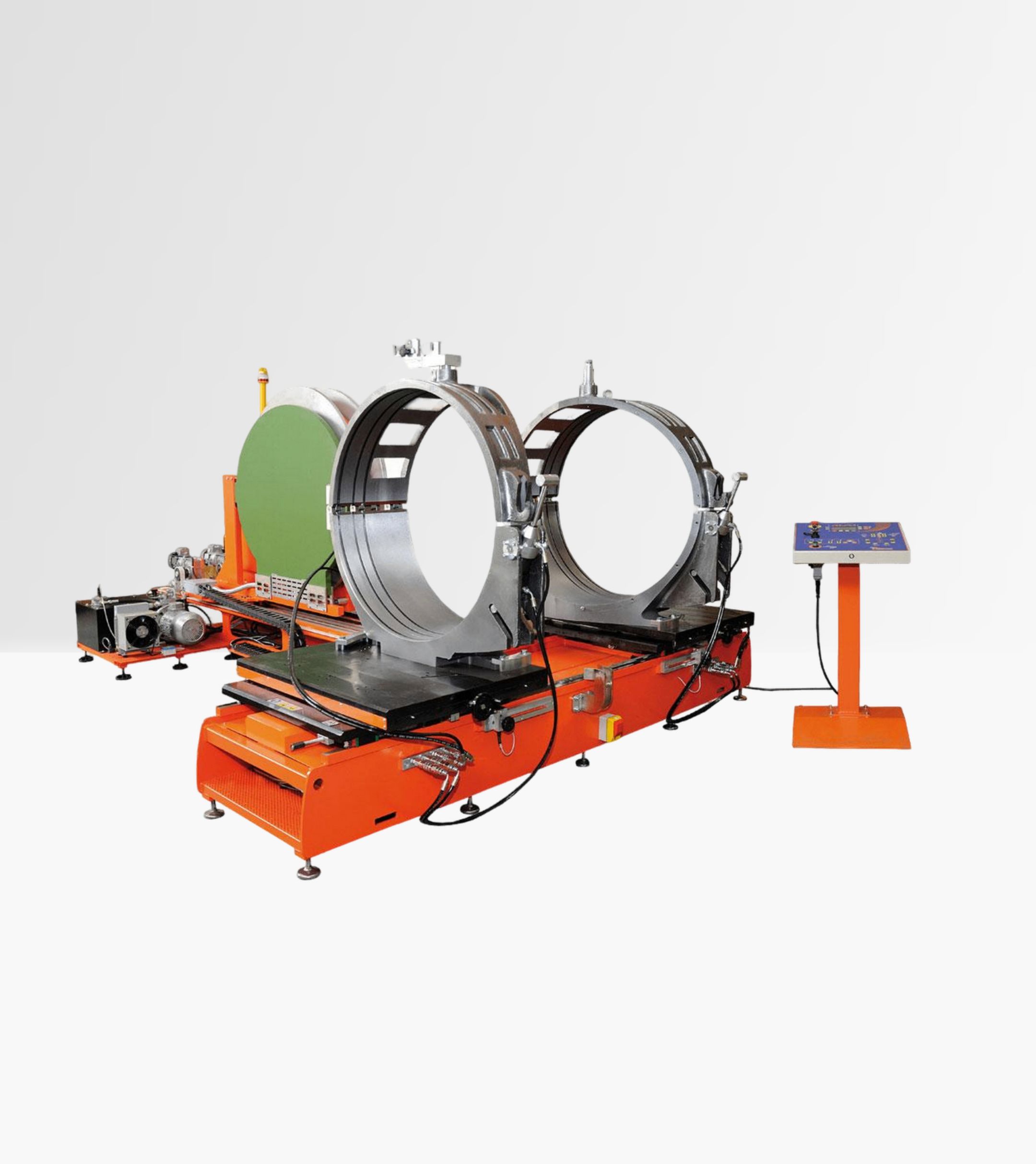

The ALFA 1000 is a CNC-controlled welding machine for fabricating fittings by joining pipe segments with specialized jaws.
Capacity
-
Elbows: Ø 355–1000 mm
-
Tees, Crosses, Wyes: Ø 355–800 mm
Key Features
-
Rigid machine body with two hydraulically controlled carriages
-

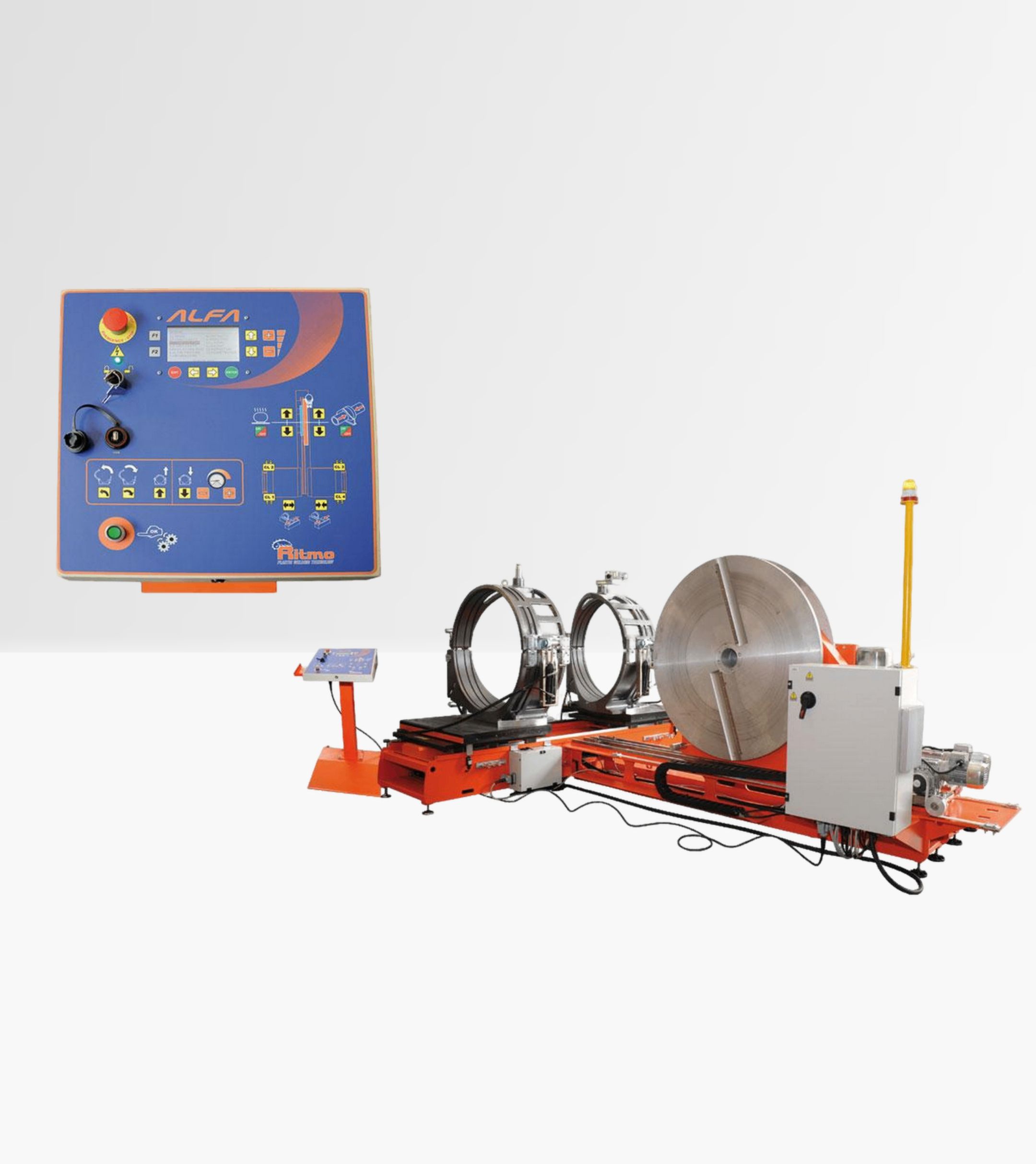

CNC control panel with data logging (up to 4000 cycles), USB PDF export, and 20 customizable presets
-
Electrically operated Teflon-coated heating plate on spherical bearing guides
-
Electrically operated milling cutter on spherical bearing guides
-
Upper cylinder for welding extra-thick pipes or high-pressure applications
Standard Configuration
-
Machine body with CNC control panel
-
Elbow jaws Ø 1000 with inserts Ø 355–900 mm
-
Heating plate
-
Milling cutter
-
Upper cylinder with service tools
Optional Accessories
-
Jaws for Wyes, Tees, Crosses Ø 800 mm with inserts Ø 355–710 mm
