Description

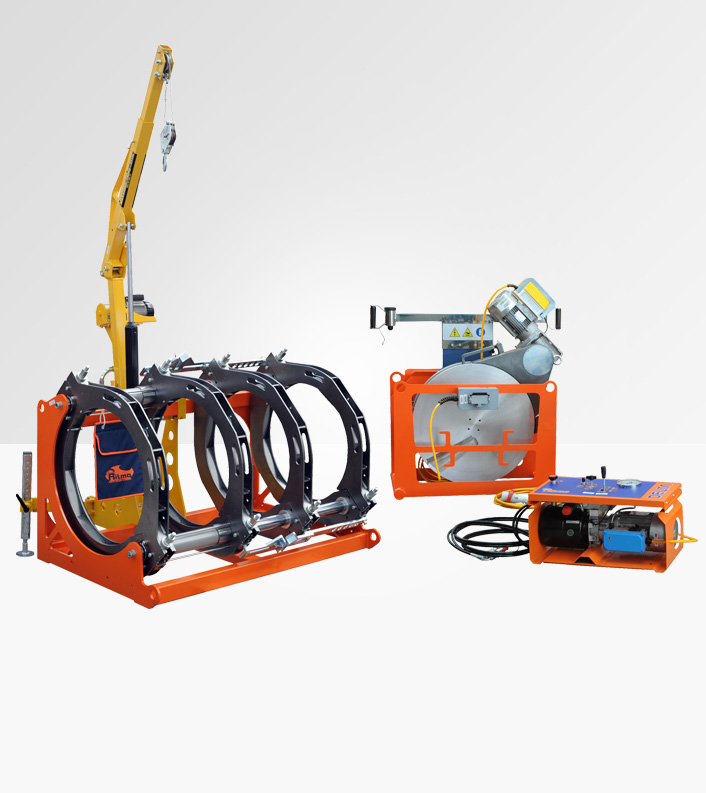

The Delta 630 is a self-aligning, pressure butt fusion welding machine suitable for fusing pipework for the transportation of water, gas and other fluids under pressure, up to 630mm Ø. It is also possible to weld fittings such as elbows, tees, wyes and stub ends thanks to the 3rd clamp being able to be anchored to the 1st and 2nd. Short neck stub ends can also be welded with the help of a special tool available on request. The standard machine composition includes:
- A machine body with steel frame, four steel clamps and two hydraulic thrust cylinders with non-drip quick couplings and steel inserts
- Self detaching device for quick removal of the heating plate during welding
- Extractable heating plate with separate thermometer for reading working temperature
- Extractable electric milling cutter for levelling pipe or fitting ends, with a safety microswitch and overload cut-out. The milling cutter’s plastic control box is protected by a metal frame equipped with a fast removal system to speed up extraction from the machine body
- Electrohydraulic gearcase with an opening and closing lever, maximum pressure and release valves, hydraulic hoses and non-drip quick couplings, as well as a timer
- Digital electrical connections box with Ritmo’s high precision ‘Digital Dragon’ temperature controller equipped with a reading display and keys for temperature adjustment, protected by a special container
- Milling cutter/heating plate support
‘The Inspector’ data logger can also be easily added if required with factory presets already in place on the machine.
Accessories available on request include:
– Clamps inserts from 280mm to 560mm Ø
– Tool for flange necks
– Electrical crane
– Special transport wooden case (machine body with trolley)
– Wooden case for inserts
– Machine body trolley
– Hydraulic rollers
– THE INSPECTOR Data-logger
– Rollers
